A Simple Epidemic Routing Scenario


Today, we will play around a bit with the ONE simulator, specifically with the Epidemic routing protocol. We will simulate two scenarios and look at the results. Detailed analysis of the results are left out for the time being.

Parameters

Here are few common parameters for the simulations.
  • Group.movementModel = RandomWaypoint
  • Group.msgTtl = 300 (5 hours)
  • MovementModel.worldSize = 450, 340
  • Scenario.endTime = 14400 (4 hours)

Stats are collected from MessageStatsReport from a single run.



Scenario #1

In the  first scenario, we vary the density of the nodes for a single speed range. In particular, we consider:
  • Epidemic routing with (10, 50, 100, 150, 200, 250, 300) nodes
  • Speed: 0.5, 1.5
It may be noted here that node density in a simulation can be controlled in different ways, e.g., by varying
  1. The number of nodes keeping the simulation geography (usually rectangular) size constant
  2. The geography size keeping the number of nodes constant
  3. Both the number of nodes and the size of the geography
In this case, we take the first approach. Certain results from this simulation scenario are presented below.

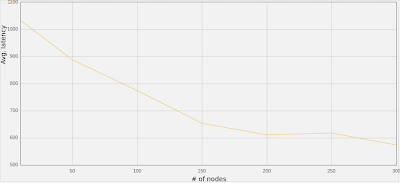

At first we look at the average delivery latency (in seconds) of the messages as a function of the number of nodes. As it can be observed from the data and the adjoining plot, the latency decreases with the increasing node density. This is due to the reason that with increased number of nodes, a message gets more chance to be delivered and that too quickly. Indeed, the latter set of data and the corresponding plot indicates that the delivery ratio increases with the node density.


Average Latency
10  1032.6966
50  887.4016
100  773.9650
150  653.5246
200  610.9147
250  617.7339
300  573.6033

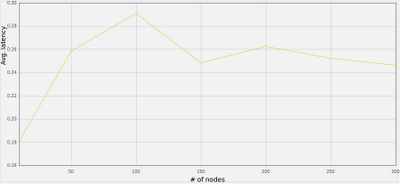

Delivery Probability
10  0.1813
50  0.2587
100  0.2912
150  0.2485
200  0.2627
250  0.2525
300  0.2464



Scenario #2

In the second scenario, we consider a constant number of nodes, but vary their speeds in different ranges, as enumerated below:
  • Speeds: [0.5,1.5; 1.5,2.5; 2.5,3.5; 3.5,4.5; 4.5,5.5; 5.5,6.5; 6.5,7.5]
  • # of nodes: 100

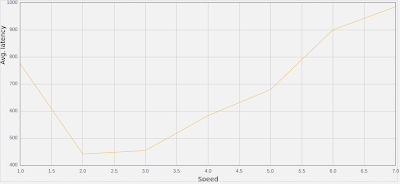

Avg latency
1  773.9650
2  440.8467
3  453.5573
4  582.5417
5  678.5824
6  899.6848
7  985.1136

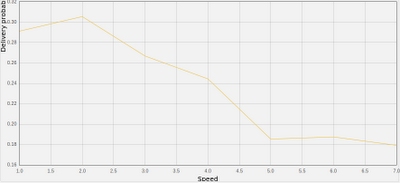

Delivery probability
1  0.2912
2  0.3055
3  0.2668
4  0.2444
5  0.1853
6  0.1874
7  0.1792



The corresponding results -- average delivery latency and delivery probability -- are shown above.

What can you infer from these results?


Revision history:

12 Feb 2014: Expanded the discussion
